Category: Coupler Gauge

CESCO (click for web site)

Coupler Gauge

Sn3

3D-printed plastic

various

assembled

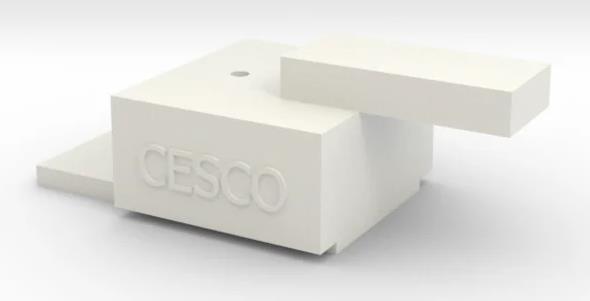

This gauge is designed for the Kadee HO-scale #5 coupler, but is suitable for Sergent and other couplers as well. Looking at the first image, the test coupler should be installed in the mounting hole facing left. The to-be-tested car's trip pin should just touch the plate on the left. The protrusion on the right is used to check the position of a coupler draft gear box (prior to installing the coupler head itself).

Copper Range Products

Coupler Gauge

Sn2

3D-printed plastic

clear

assembled

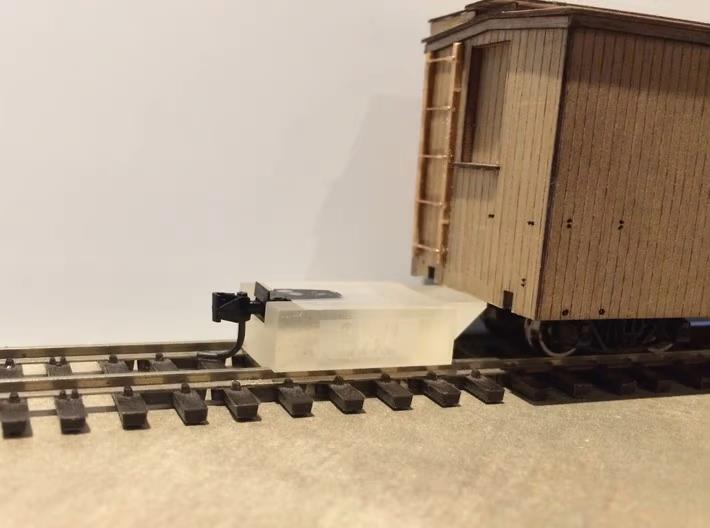

Fits both Kadee #714 and Sergent Engineering Narrow Shank coupler boxes.

Great Decals! (click for web site)

Coupler Gauge

119

S

resin

white

assembled

Product Review (PDF)

S Scale Resource, February 2022

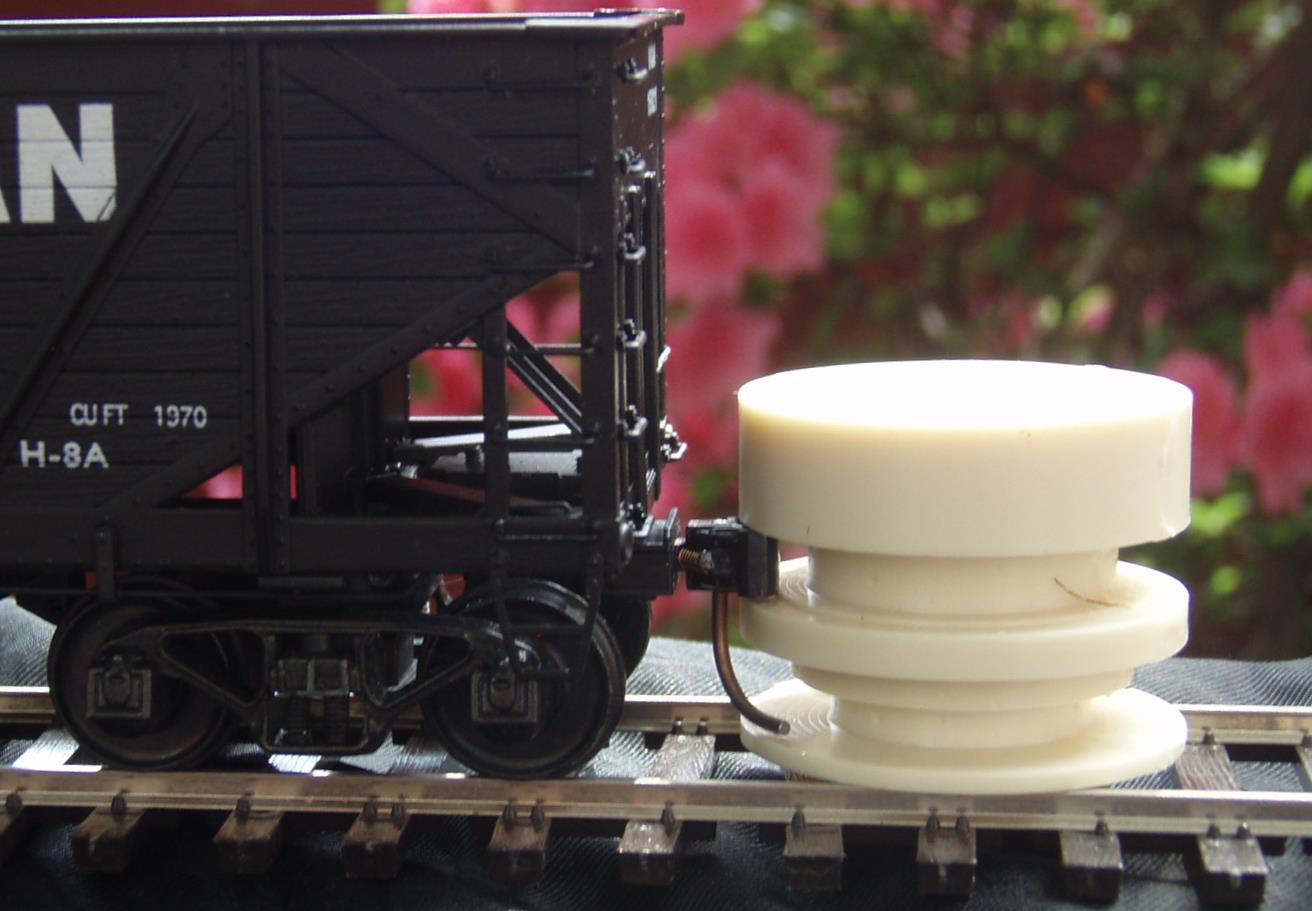

The TruGage is purposely made out of resin so that it can be used on track that has power applied to it. Designed to be used with Kadee-style couplers.

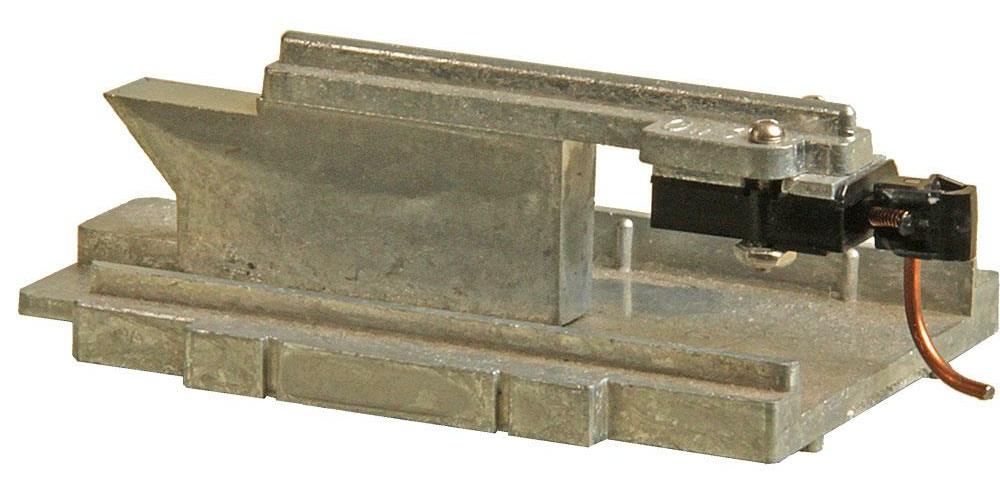

Kadee (click for web site)

Coupler Gauge

#814

S

metal

assembled

Used for gauging the proper location of the coupler and trip pin. Includes a #802 coupler. Also spec'd to NASG/NMRA track gauge and scale wheel width.

NASG (click for web site)

Coupler Gauge

S

metal coupler, plastic body

gray

assembled

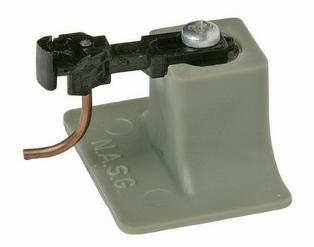

This gauge comes with a Kadee #802 coupler, for those who primarily use the #802 coupler, or the S-Helper Service/MTH coupler, on their equipment. When placed between the rails, this gauge will help determine whether or not your equipment's coupler is even with the recommended standard.

NASG (click for web site)

Coupler Gauge

S

metal coupler, plastic body

red

assembled

This gauge comes with a Kadee #5 coupler for those who primarily use the #5 coupler, or other brand's HO-scale couplers, on their equipment. When placed between the rails, this gauge will help determine whether or not your equipment's coupler is even with the recommended standard.
